Brief Description
Light Weight 640x512 / 12μm Focal Plane Array Microbolometer LWIR Thermal Imaging Sensor
Product Description
GST612W uncooled thermal imaging detector is oriented for optimized SWaP-C (Size, Weight, Power, Cost). Its resolution is 640x512 with pixel size at 12μm. The LWIR infrared detector can capture long-wave infrared (LWIR) spectrum that ranges from 8 to 14μm.
The high resolution and reduced pixel size of GST612W FPA infrared detector enables greater thermal imaging quality up to 327,680 pixels. Its larger array can provide more detailed images to meet the needs of higher resolution and wider field of view applications.
Global Sensor Technology is a supplier of cooled uncooled infrared detectors and infrared thermal imaging modules. We have more than 10 years of experience about infrared thermal imaging applications and a set of mature solutions available for customers. At the same time, we also have professional after-sales service team to provide you with professional reply. For any questions or problems, please contact us at any time, we will be in the first time for you to answer.
Main Features
- Type: VOx microbolometer
- Size: 18x16x2.8mm
- Weight: <1.5g
- Affordable price
- Clear Image Quality
Product Specifications
| Model | GST612W |
| Material | VOx |
| Resolution | 640x512 |
| Pixel Pitch | 12μm |
| Spectral Range | 8-14μm |
| NETD | <40mK |
| Digital Output | Built-in 14 bits ADC |
| Typical Responsivity | 15mV/K |
| Thermal Response Time | <12ms |
| Frame Rate | 50/60Hz |
| Dimension (mm) | 18x16x2.8 |
| Weight | <1.5g |
| Operation Temperature | -40°C ~ +85°C |
Industrial Applications
The GST612W uncooled infrared detector is widely used in Thermography, Security & Monitoring, Thermal Night Vision, Law Enforcement & Rescue, ADAS, UAV Payloads etc.
Our Advantages

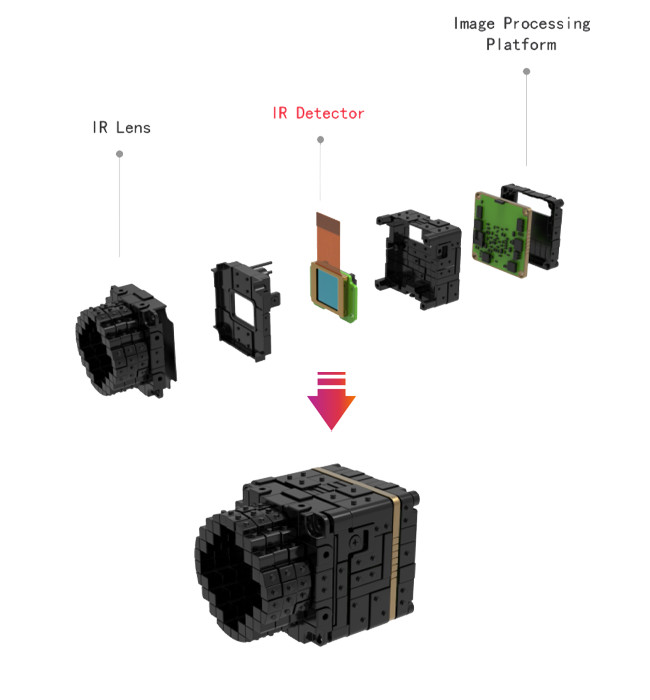

Not only IR Detectors, But also ONE-STOP Infrared Solutions
FAQs
1. What is infrared thermal imaging?
Infrared thermal imaging is a method of using infrared radiation and thermal energy to gather information about objects, in order to formulate images of them, or get temperature information of the objects, even in low visibility environments.
2. How does Infrared Thermal Imaging Work?
Infrared thermal imaging system is a passive non-contact detection and identification of infrared technology. It focuses the infrared radiation of the scene on the focal plane array infrared detector through the infrared optical system that can pass through infrared radiation. The thermal detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.
