PLUG617 Infrared Camera Module

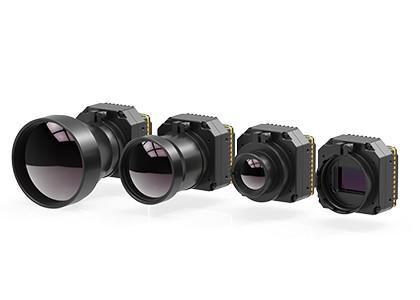

PLUG617 Stable Performance 640x512 / 17μm Uncooled Thermal Camera Core by GST
Product Description
PLUG617 is one of the PLUG series uncooled thermal camera sensor module developed by Global Sensor Technology (GST).
Consisted of 640x512 / 17µm uncooled thermal camera sensor, the PLUG617 LWIR camera module provides clear image and superior performance. Except for the standard interfaces that is available for easy integration for OEM customers, we also provide personalized customization services so that our infrared camera module can be easily integrated into your existing systems.
GST focuses on quality control and assurance in industrial operations, process control, optimization and monitoring to provide products to the customer continuously and prevent production stoppages. We also have professional team to offer after-sales service to the customers. Our commitment to quality, performance and service is the corner stone of our business philosophy.
Main Features
- NETD<30mk, High Sensitivity
- Stable Performance
- Easy Integration & Plug-in
- Clear Image Quality & Details
- Strong Environmental Adaptability
Product Specifications
| Model | PLUG617 |
| IR Detector Performance |
| Resolution | 640x512 |
| Pixel Pitch | 17μm |
| Spectral Range | 8~14μm |
| NETD | ＜30mk |
| Image Processing |
| Frame Rate | 9Hz/25Hz/30Hz/50Hz/60Hz |
| Start-up Time | <10s |
| Analog Video | PAL/NTSC |
| Digital Video | RAW/YUV/BT656/LVDS |
| Extension Component | USB/Camerlink |
| Dimming Mode | Linear/Histogram/Mixed |
| Digital Zoom | 1~8X Continual Zoom, Step Size 1/8 |
| Image Display | Black Hot/White Hot/Pseudo Color |
| Image Direction | Horizontally/Vertically/Diagonally Flip |
| Image Algorithm | NUC/AGC/IDE |
| Electrical Specification |
| Standard External Interface | 50pin_HRS Interface |
| Communication Mode | RS232-TTL, 115200bps |
| Supply Voltage | 4~6V |
| Typical Power Consumption | <1.2W |
| Physical Characteristics |
| Dimension (mm) | 44.5x44.5x36.6 |
| Weight | <90g |
| Environmental Adaptation |
| Operation Temperature | -40°C ~ +70°C |
| Storage Temperature | -45°C ~ +85°C |
| Humidity | 5%~95%, Non-condensing |
| Vibration | Random Vibration 5.35grms, 3 Axis |
| Shock | Half-sine Wave, 40g/11ms, 3 Axis 6 Direction |
| Optics |
| Optional Lens | Fixed Focus Athermal: 7.5mm/13mm/19mm/25mm/35mm/50mm/60mm/100mm
Motorized Lens: 75mm/100mm/150mm
Continuous Optical Zoom: 30-150mm |
Industrial Applications
The PLUG617 thermal imager module is widely used in Security and Monitoring, Outdoors, Law Enforcement Rescue, Firefighting and Rescue, ADAS, UAV Payloads etc.
About GST Infrared
FAQs
1. What is infrared thermal imaging?
Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. It converts invisible infrared radiation into visible infrared thermal image with temperature distribution of the target surface. Different objects and even different parts of the same object have different radiation ability and infrared reflection strength.
2. What can infrared imaging be used for?
-Night vision
-Search & rescue
-Non-destructive test
-Epidemic prevention
-Thermography
-Security & monitoring
-Firefighting
…
3. What is thermal imaging module?
A thermal imaging module usually consists of an infrared detector, infrared lens and hardware electronics with software and algorithm embedded. It is the minimum unit of a thermal imaging device.
